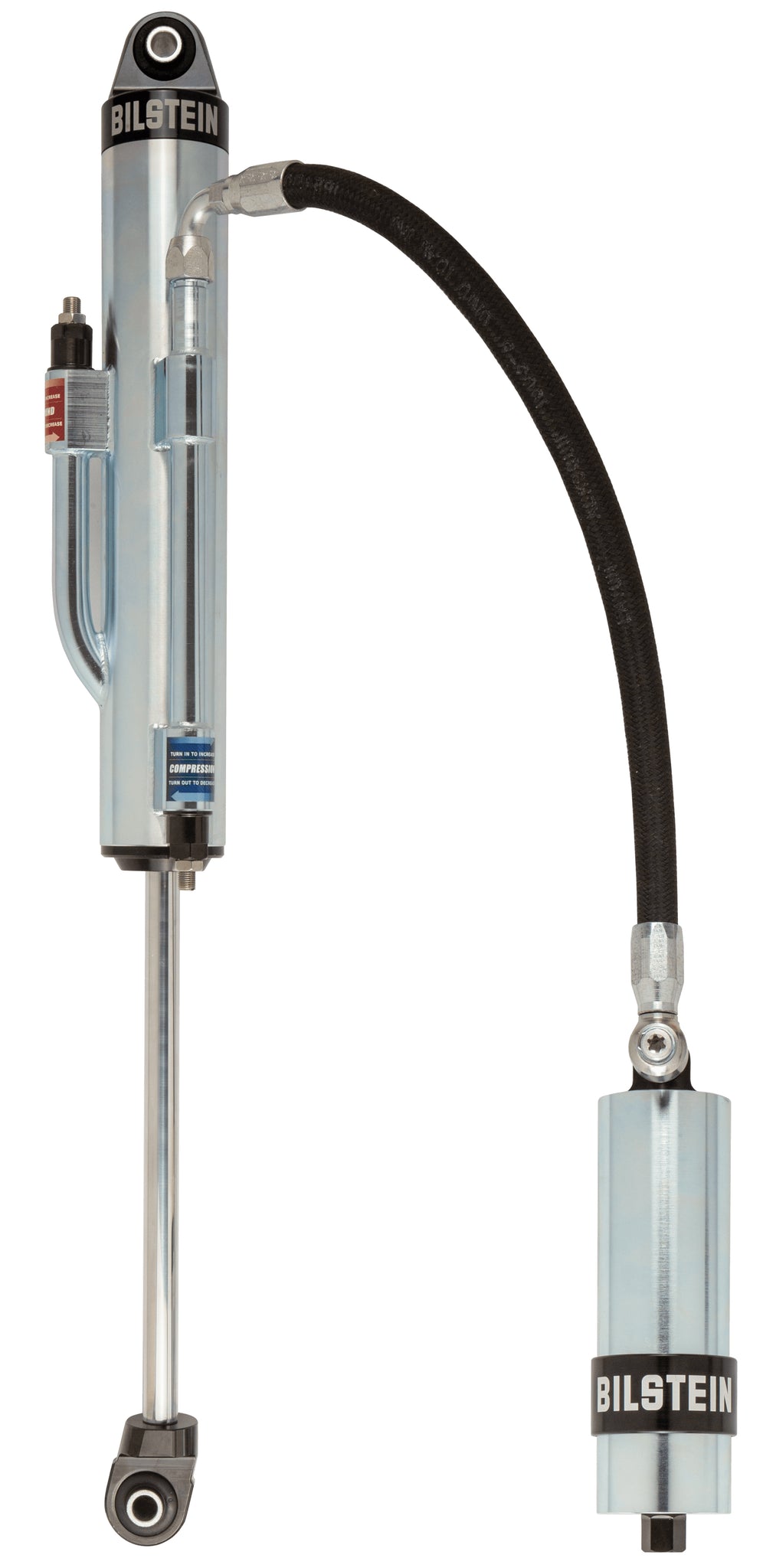

Bilstein Tundra 4Wd; '07-; Lr; B8 8100 Bypas For Toyota Tundra Bilstein Tundra 4Wd; '07-; Lr; B8 8100 Bypas For Toyota Tundra BILSTEIN Bypass shock absorbers offer the most compliant ride in all conditions and provide maximum bottom out control when the road gets rough. Utilizing an adjustable external bypass shock is the easiest and most effective way to tune your suspension for ultimate performance. Specifications Type: Nitrogen Gas Charged With Coil Spring: No Internal Design: Twin Tube Adjustable: Yes Extended Length (IN): 25.8 Inch Compressed Length (IN): 15-3/4 Inch Upper Mounting Style: Stud Lower Mounting Style: Eyelet Body Color: Silver Quantity: Single With Reservoir: Yes Includes Dust Shield: No Includes Hardware: No Includes Boot: No Estimated Install Time (Hours): 0.5 Other Features The Bump Zone, Located Above The Compression Bypass Tube, Increases Bottoming Control And Eliminates The Need For A Hydraulic Bump Stop Dual Tube External Bypass Offers Position Sensitive Damping With Independent Adjustment For Rebound And Compression Incremental Flow Adjuster Offers Finite And Incremental Changes In Damping Force For Precise Adjustments Bottom Port Reservoir Hose Provides Increased Bottom Out Control During The Compression Cycle Billet Rod End With Vulcanized Mounts For An Exact OE Fit And Long-Term Durability Vehicle Specific Tuning With The Ability To Make A Wide Range Of Adjustments 60 Millimeter Large Bore Hard Anodized Aluminum Piston Offers A Greater Range Of Damping Control And Delivers Exceptional Long-Term Durability Direct Fit For Easy Installation 18 Millimeter Piston Rod Provides Brute Tensile Strength And Reduces Internal Gas Force Ramp-Up Providing A Smoother Ride Limited 2 Year Warranty

Bilstein Tundra 4Wd; '07-; Lr; B8 8100 Bypas For Toyota Tundra

Part Number : 25284539
Bilstein Tundra 4Wd; '07-; Lr; B8 8100 Bypas For Toyota Tundra

Bypass shock absorbers offer the most compliant ride in all conditions and provide maximum bottom out control when the road gets rough. Utilizing an adjustable external bypass shock is the easiest and most effective way to tune your suspension for ultimate performance.

Specifications

  • Type: Nitrogen Gas Charged
  • With Coil Spring: No
  • Internal Design: Twin Tube
  • Adjustable: Yes
  • Extended Length (IN): 25.8 Inch
  • Compressed Length (IN): 15-3/4 Inch
  • Upper Mounting Style: Stud
  • Lower Mounting Style: Eyelet
  • Body Color: Silver
  • Quantity: Single
  • With Reservoir: Yes
  • Includes Dust Shield: No
  • Includes Hardware: No
  • Includes Boot: No
  • Estimated Install Time (Hours): 0.5

Other Features

  • The Bump Zone, Located Above The Compression Bypass Tube, Increases Bottoming Control And Eliminates The Need For A Hydraulic Bump Stop
  • Dual Tube External Bypass Offers Position Sensitive Damping With Independent Adjustment For Rebound And Compression
  • Incremental Flow Adjuster Offers Finite And Incremental Changes In Damping Force For Precise Adjustments
  • Bottom Port Reservoir Hose Provides Increased Bottom Out Control During The Compression Cycle
  • Billet Rod End With Vulcanized Mounts For An Exact OE Fit And Long-Term Durability
  • Vehicle Specific Tuning With The Ability To Make A Wide Range Of Adjustments
  • 60 Millimeter Large Bore Hard Anodized Aluminum Piston Offers A Greater Range Of Damping Control And Delivers Exceptional Long-Term Durability
  • Direct Fit For Easy Installation
  • 18 Millimeter Piston Rod Provides Brute Tensile Strength And Reduces Internal Gas Force Ramp-Up Providing A Smoother Ride
  • Limited 2 Year Warranty
