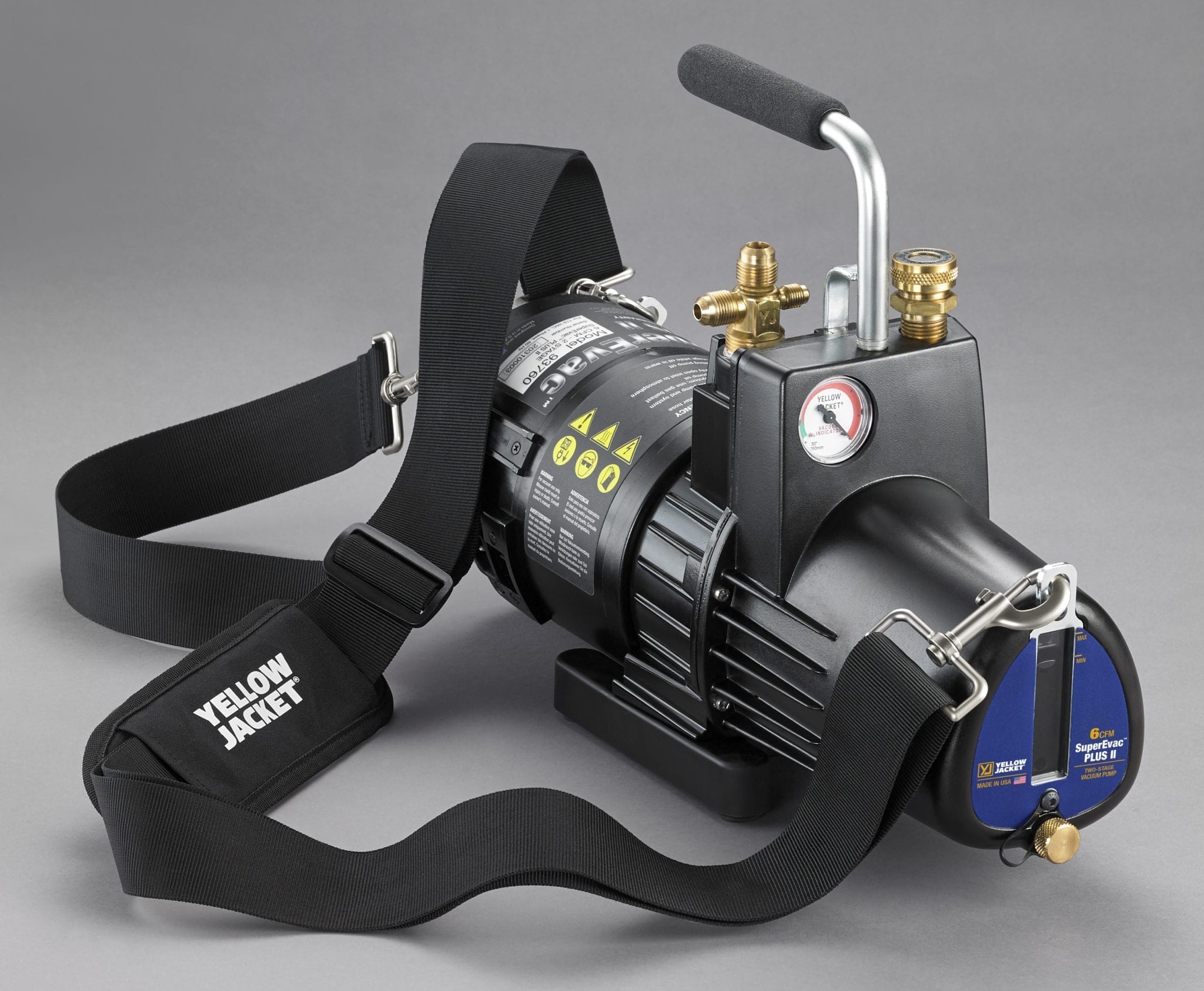

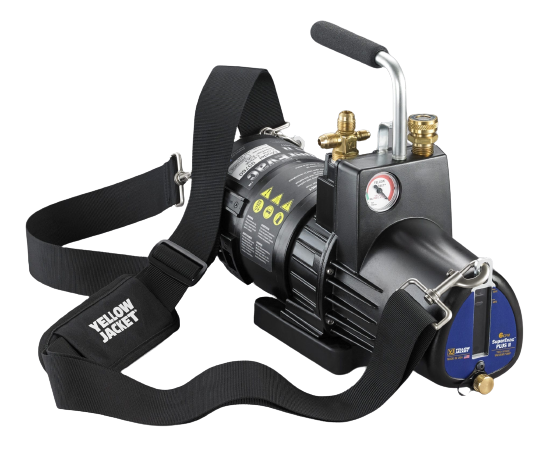

Yellow Jacket 93780 SuperEvac Plus II 1/2 hp 8 CFM Vacuum Pump, 115VAC
Yellow Jacket 93780 SuperEvac Plus II 1/2 hp 8 CFM Vacuum Pump, 115VAC
Richie Engineering
The Brushless DC (BLDC) Motor incorporated in the next-generation YELLOW JACKET® SuperEvac® PLUS II Vacuum Pump provides key advantages over existing AC technology vacuum pumps. High torque and high efficiency define the ultimate performance of the most reliable vacuum pump. Able to function in extremely low voltage conditions and field rated to 15 microns, the SuperEvac® PLUS II is always ready. The easy-to-carry, lightweight design is available in 4, 6, 8 and 11 cfm models.
Features:
Designed for use with A2L systems
Isolation valve for oil changes without losing vacuum in the system
The gas ballast valve keeps oil cleaner, and longer during the evacuation
Internal intake check valve to help prevent oil backup into the system and to maintain vacuum during a power failure
The intake filter screen keeps damaging particles from entering the pump
Heavy-duty rotors and bearings
Built-in vacuum gauge
Other Details:
High Torque, High Efficiency, Brushless DC (BLDC) Motor
Performance and Ergonomics
Wide mouth oil reservoir port for easier, cleaner filling. Doubles as a pump exhaust – threaded to attach a garden hose for exhaust to a remote location.
Large brass oil drain for easy access to fast oil changes
Downward angled oil sump to remove contaminants usually trapped in other pump designs
Non-sparking switch for A2L compliance
Locking, low-profile IEC connector with 9’10” (3 meters) power cord to prevent accidental removal
Heavy-duty steel handle
Lift hook for hoisting pump to rooftops
IPX4 Rating – resistant to water splashes from any direction
