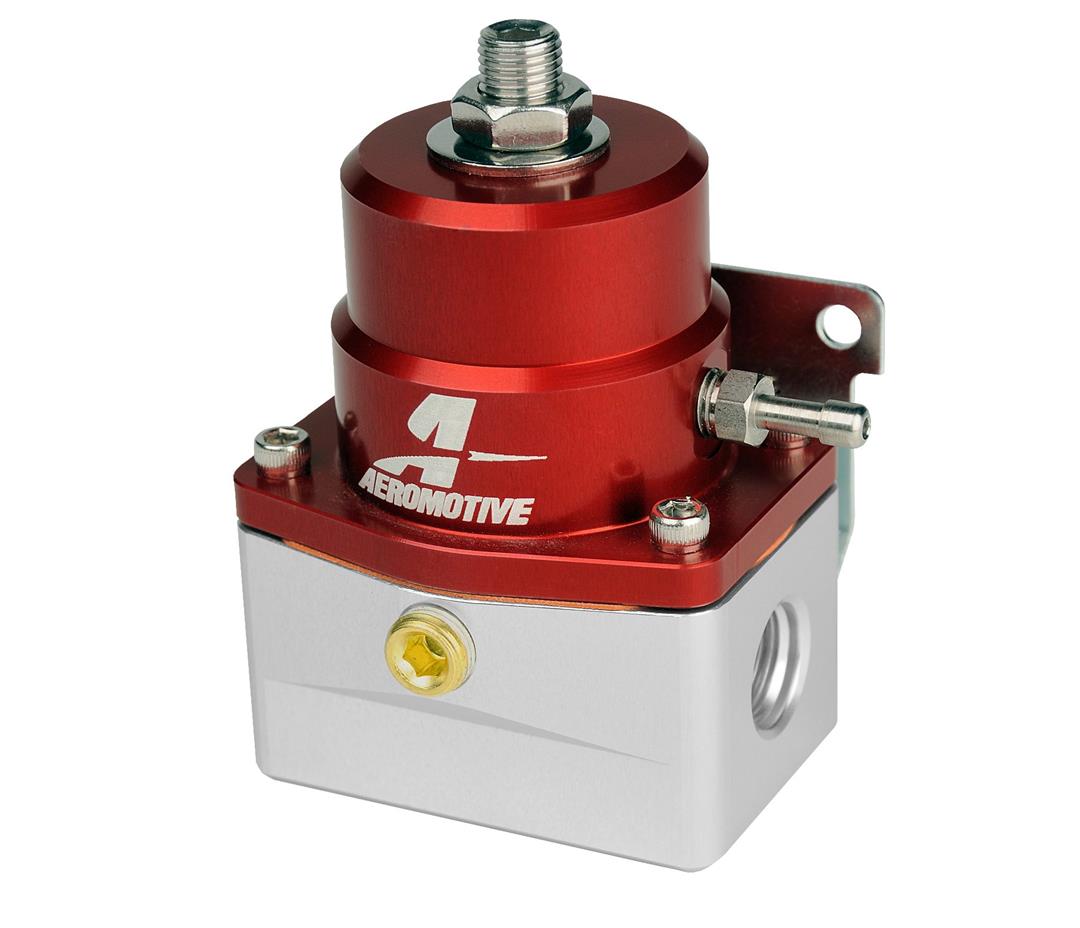

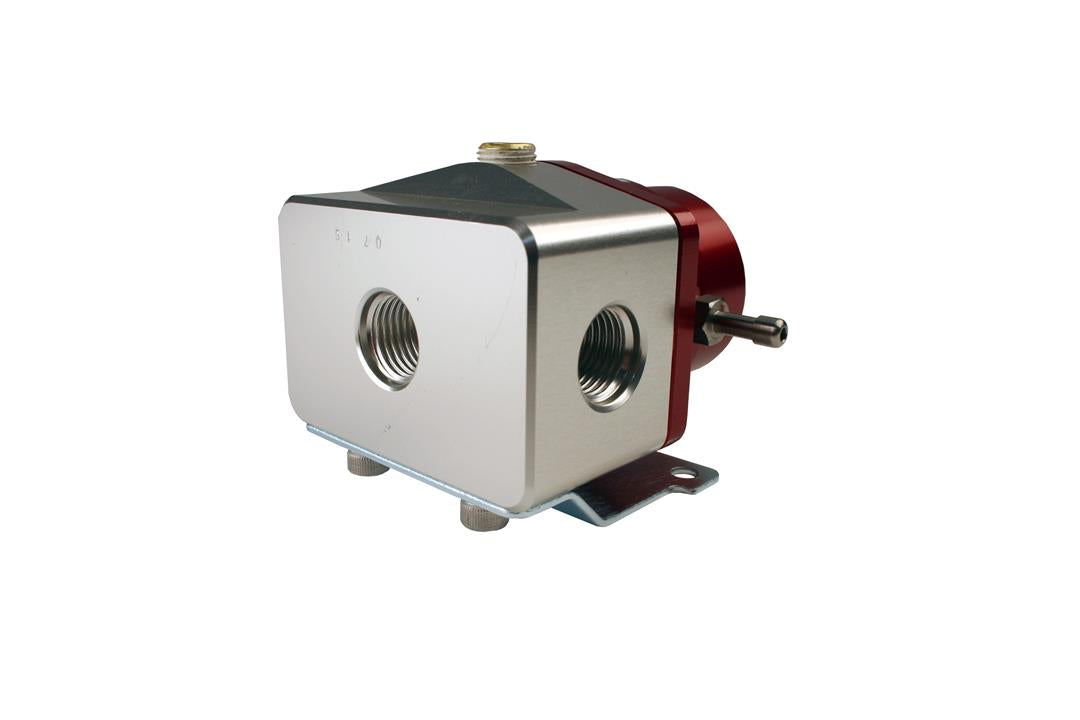

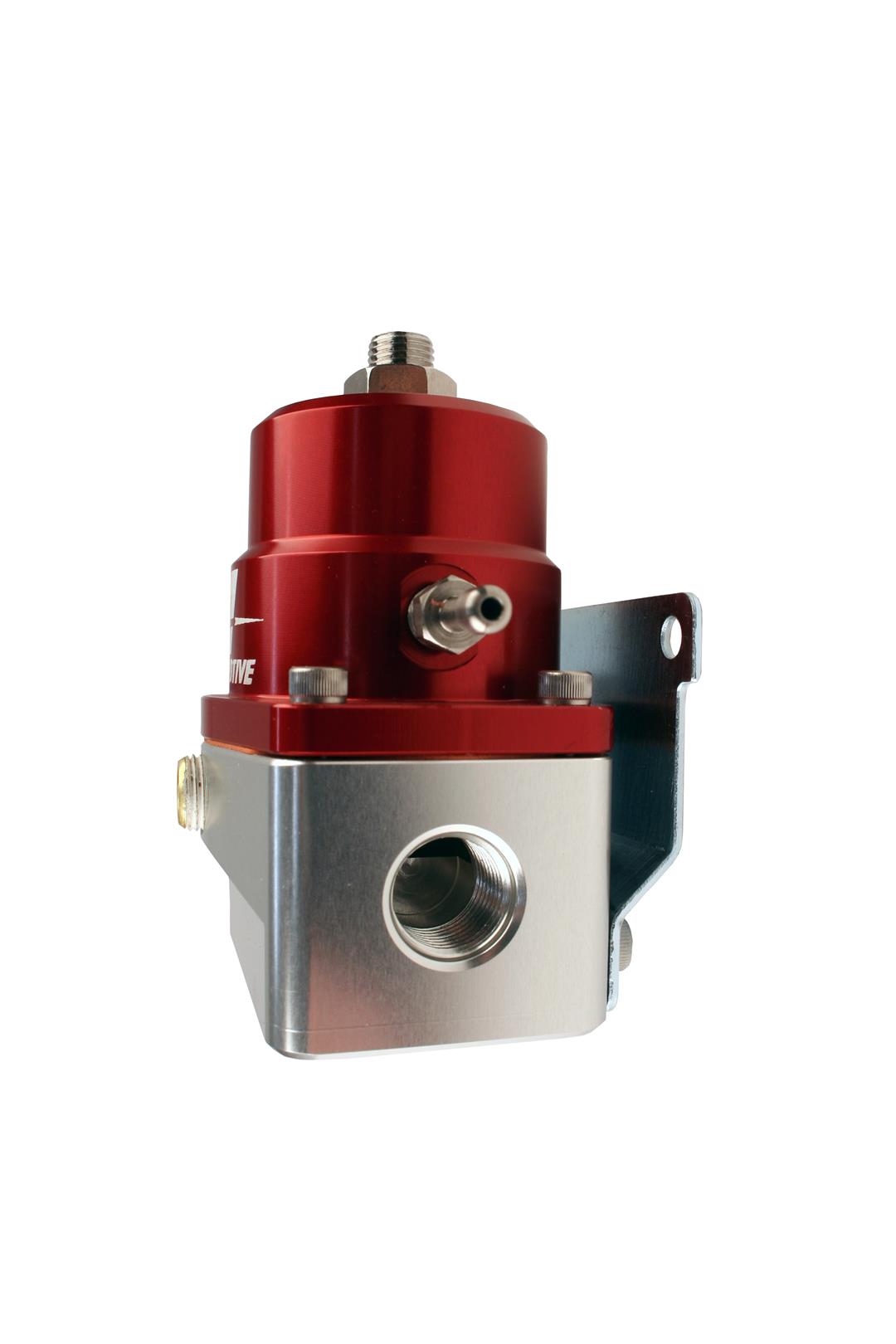

REG INJ BYPASS ADJ EFI
REG INJ BYPASS ADJ EFI
Aeromotive
Performance electronic fuel injection regulator designed for medium to high Horsepower applications. This regulators features Aeromotive's high flow design, superb pressure control and legendary durability. On the street and at the track, this pressure regulator has logged more miles, laps and passes than any other performance Electronic Fuel Injection regulator in the world!
Features & Benefits
Adjustable Base Pressure From 40 To 75 PSI
Gasoline And Alcohol Compatible
Fuel Pressure Rises On A 1:1 Ratio With Boost
1/8 Inch NPT Gauge Port
O-Ring Boss-10 Inlet Ports And O-Ring Boss-06 Return Port
Limited 1-Year Warranty
Attributes
Pressure Range (PSI): 40 To 75 Pounds Per Square Inch
Fuel Type: Gasoline
Regulator Location: Fuel Rail Mount
Regulator Type: Return
Shape: Square
Inlet Size: 3/8 Inch (-6 AN)
Inlet Quantity: 1
Inlet Attachment: Male Threads
Outlet Size: 3/8 Inch (-6 AN)
Outlet Quantity: 1
Outlet Attachment: Male Threads
Return Port Size: 3/8 Inch (-6 AN)
Finish: Anodized
Color: Red
Material: Aluminum
Gauge Port: Yes
Includes Fittings: Yes
Includes Mounting Brackets: Yes
